180W Unmanned Aerial Vehicle Air Conditioning System

認証
中国 Adcol Electronics (Guangzhou) Co., Ltd. 認証
中国 Adcol Electronics (Guangzhou) Co., Ltd. 認証
顧客の検討
あなたの会社は完璧な熱電気組み立て製品を作っています ここ数年,私たちはとても幸せに協力してきました.

—— ユルゲン・クレイス

いいサプライヤー,完璧な商品,完璧な配達!

—— CHANA

オンラインです

180W Unmanned Aerial Vehicle Air Conditioning System

180W Unmanned Aerial Vehicle  Air Conditioning System
180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System 180W Unmanned Aerial Vehicle  Air Conditioning System

大画像 :  180W Unmanned Aerial Vehicle Air Conditioning System

商品の詳細:
起源の場所: 中国
ブランド名: Adcol
証明: ISO9001 , CE
モデル番号: ATA180-24VDC
お支払配送条件:
最小注文数量: 1EA
価格: negotiable
パッケージの詳細: 固体カートンパッケージ
受渡し時間: 3〜4週間
支払条件: T/T、ペイパル
供給の能力: 500pcs

180W Unmanned Aerial Vehicle Air Conditioning System

説明
p/n: ATA180-24VDC 冷却方法: エアクール
放射方法: エアフォーク 周囲温度/湿度: -20〜60°C
冷却能力: 180W 入力電源: 330W
加熱容量: 520W ホット/コールドサイドファン電流: 0.60/0.35 A
TEM公称/起動時電流: 12.5/14.8A 公称/最大電圧: 24/27 VDC
重さ: 7.5kg 一生: > = 70,000時間
ノイズ: 55 dB 許容範囲: 10%



Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.





180W Unmanned Aerial Vehicle Air Conditioning System



1.Product Introduction

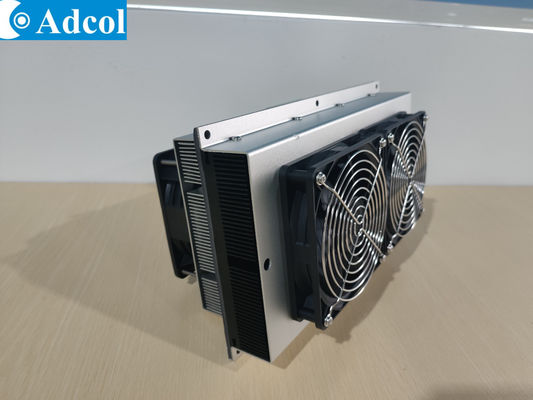

The ATA180-24  is designed for Unmanned Aerial Vehicle Air Conditioning System
 It can maintain ambient temperatures while removing up to about 180W. This model is  available
in 24VDC configurations. This airconditioner is virtually maintenance-free, with no filters ambient
to change, and it can be mounted in any orientation, offering design  flexibility with solid-state reliability.

180W Unmanned Aerial Vehicle  Air Conditioning System 0

2.Features

  • About 180W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts


3.Application

  • Outdoor enclosures
  • Outdoor/Indoor Kiosks and display
  • Battery Cabinet
  • Food/Consumer Refrigerator

4.Performance Curve

180W Unmanned Aerial Vehicle  Air Conditioning System 1


5.Design drawing

180W Unmanned Aerial Vehicle  Air Conditioning System 2

180W Unmanned Aerial Vehicle  Air Conditioning System 3180W Unmanned Aerial Vehicle  Air Conditioning System 4
