商品の詳細:
|
| 部品番号: | ATP040-12VDC | 冷却方法: | プレートクール |
|---|---|---|---|
| 放熱方式: | 空軍 | 周囲温度・湿度: | -10〜55°C |
| 冷却能力: | 40W | 公称/最大電圧: | 12/15VDC |
| ファン、ホットサイド: | 92×25mm,12VDC,0.0.24 | 重さ: | 1.0kg |
| 一生: | >=70,000 時間 | ノイズ: | 45dB |
| 許容範囲: | 10% |

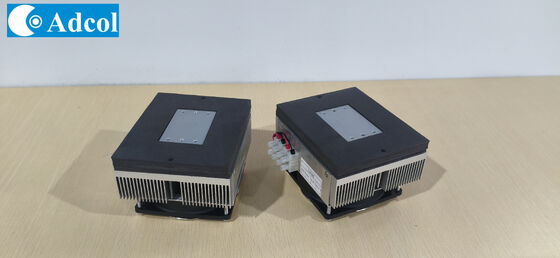

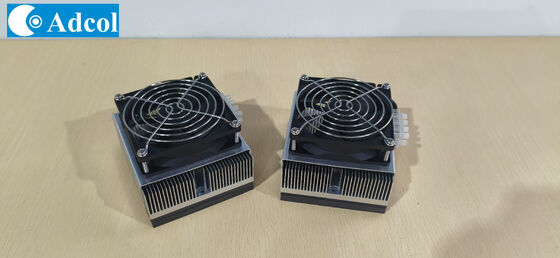

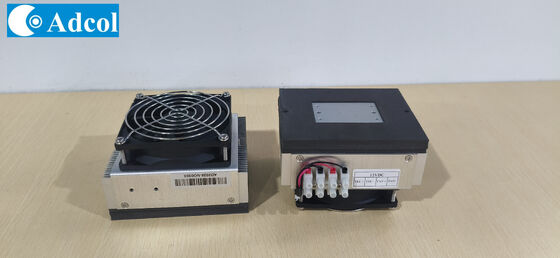

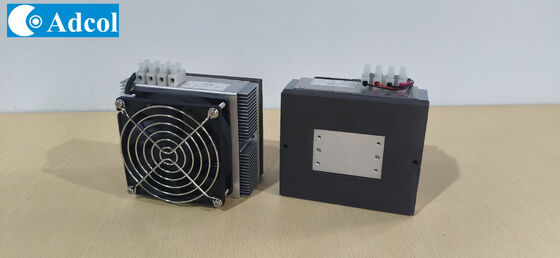

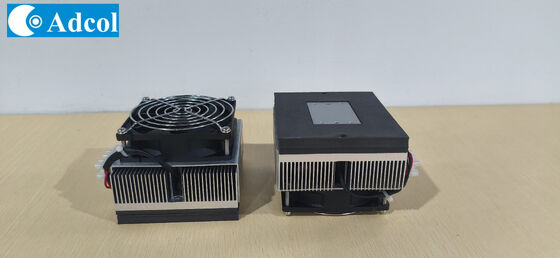

40W Air to Plate thermoelectric Cooler Assembly
1.Product Introduction
The ATP040-12 Thermoelectric air plate is designed forelectronic cabinets and environmental
chambers.lt canmaintain ambient temperatures while removing up to 50W.This model is
available in 12VDC configurations. This airColdplate is virtually maintenance-free,
with no filters ambientto change, and it can be mounted in any orientation,
offeringdesign flexibility with solid-state reliability.
3.Application
4.Design drawing
