商品の詳細:
|
| p/n: | ATL200-24VDC | 冷却方法: | 液体冷却しなさい |
|---|---|---|---|
| 放射方法: | 空軍 | 周囲温度/湿度: | -20〜60°C |
| 冷却能力: | 200W | 入力電源: | 24VDC |
| 定格消費電流: | 14.0a +/- 5％ | 開始電流: | 17.2a +/- 5％ |
| 動作湿度: | 80％未満 | 過熱保護: | いいえ |
| 扇風機入力電圧: | 24VDC | 交換器の材料: | アル 硬い酸化 |
| ノイズ: | 48 dB | 一生: | >=7万時間 |
| 重さ: | 6.5kg |
Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

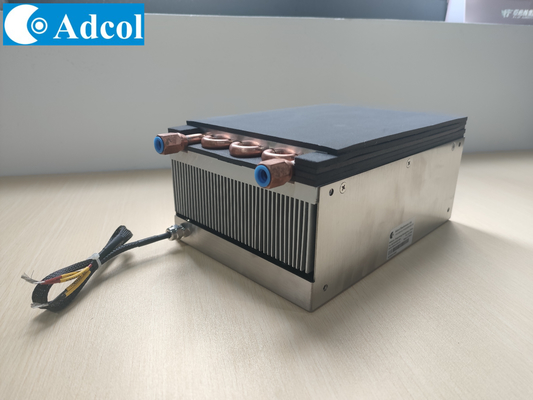

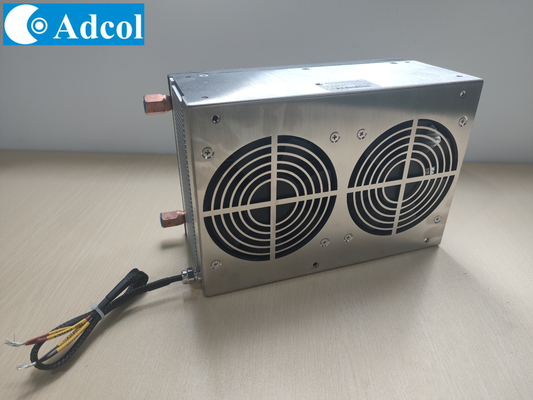

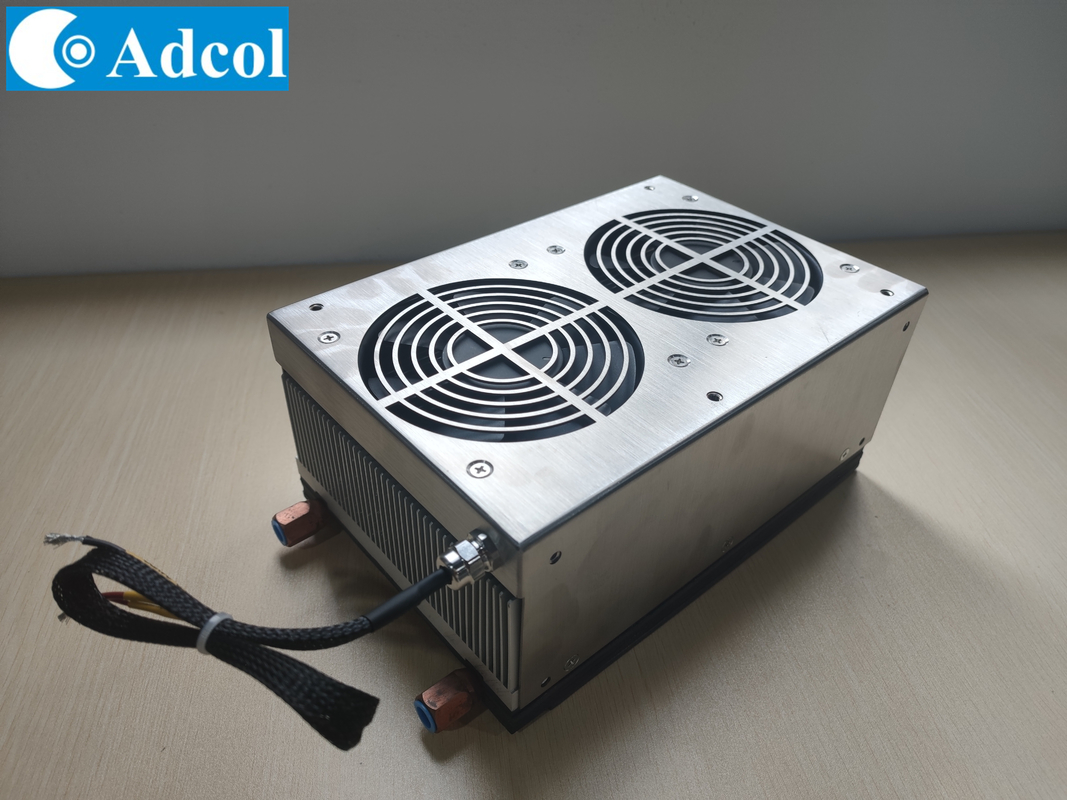

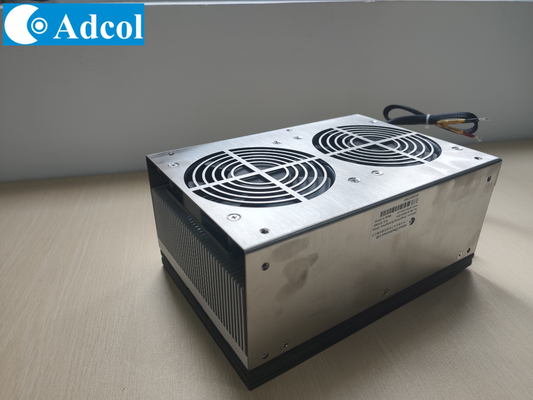

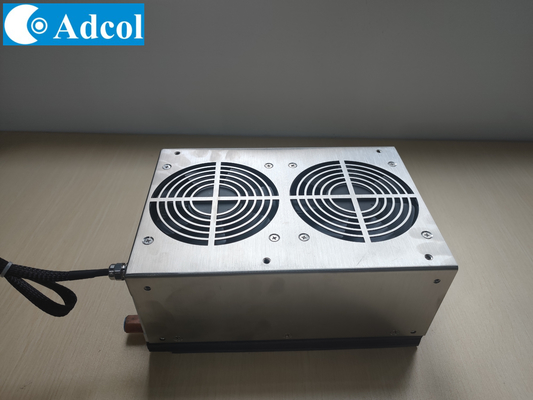

ATL200-24VDC Air to Liquid thermoelectric Cooler Assembly
1.Product Introduction
(1).Thermoelectric air liquid is designed for cooling objects via liquid to transfer heat.
Heat is absorbed through a liquidexchanger and dissipated by high density heatsink with fan.
(2).The ATL200-24 Thermoelectric air to Liquid aredesigned for electronic liquid cooling.
They cancool to 72Fbelow ambient or maintain ambienttemperatures while removing up
to 200W.
(3).Also it is virtually maintenance-free, and can bemounted in any orientation, offering design
flexibility with solid-state reliability
2.Features
(1)200W capacity rated at ΔT = 0°C,Tambient= 30°℃
(2)Refrigerant free-environmentally friendly
(3)Wide operating temperature range of -20°C to +60°℃
(4)Shift between heating and cooling without using a heater
(5)Reduced noise and vibration with no moving parts
3.Application
(1)Analytical instrument
(2)Medical diagnostics
(3)Industrial laser
(4)Medical laser
