商品の詳細:
|
| p/n: | ATP050-12VDC | 冷却方法: | プレートクール |
|---|---|---|---|
| 放射方法: | 空軍 | 周囲温度/湿度: | -20〜60°C |
| 冷却能力: | 50W | 入力電力: | 90W |
| 加熱容量: | 130W | ホット/コールドサイドファン電流: | 0.4A/NA |
| TEM公称/起動時電流: | 8.0/9.0A | 公称/最大電圧: | 12/15 VDC |
| 全体的な次元: | 160mm×122.4mm×82mm | 重さ: | 1.2kg |
| 一生: | > = 70,000時間 | 許容範囲: | 10% |
| ハイライト: | 50W Peltier plate cooler for medical diagnostics,Thermoelectric cooler for industrial devices,Air to plate cooler for analytical instruments |
||

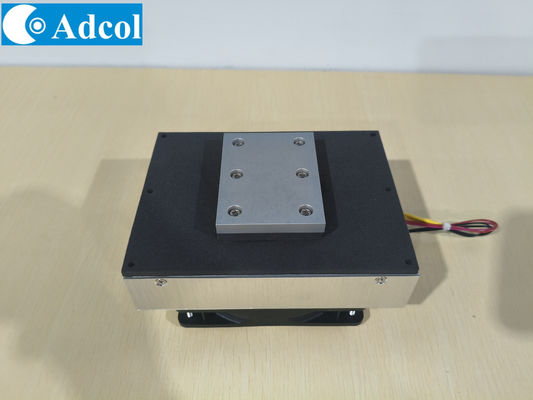

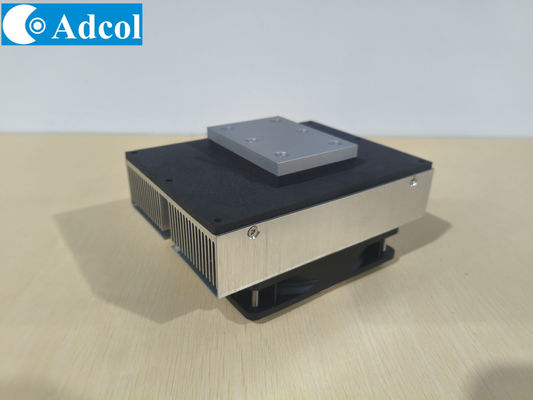

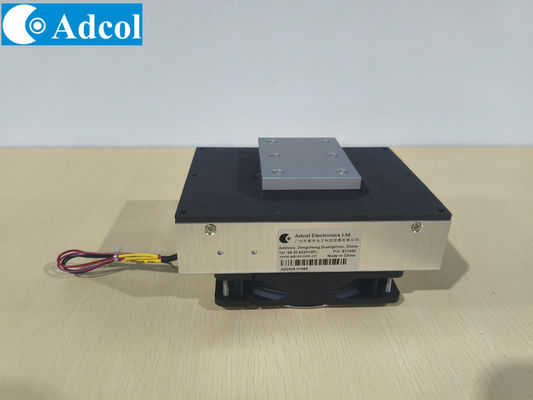

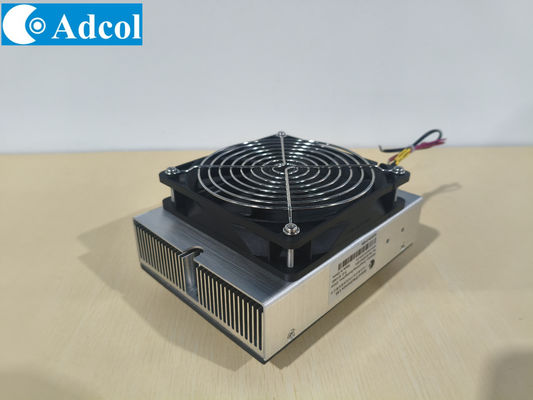

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.
The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.
4. Performance Curve
5. Design drawing
6. Installation cut hole and Connector
