80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

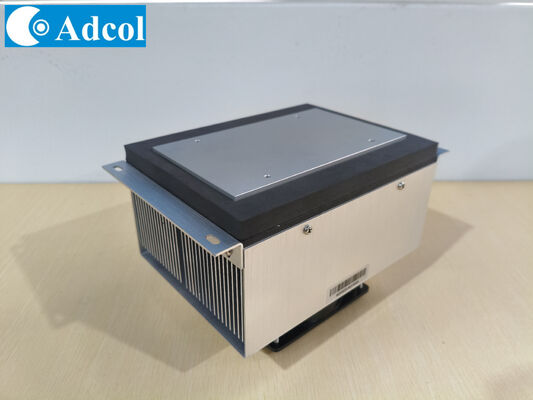

大画像 :  80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

商品の詳細:
起源の場所: 中国
ブランド名: ADCOL
証明: ISO9001 , CE
モデル番号: ATP080-24VDC
お支払配送条件:
最小注文数量: 1EA
価格: negotiable
パッケージの詳細: 固体カートンパッケージ
受渡し時間: 3〜4週間
支払条件: T/T、ペイパル
供給の能力: 500個

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers.

説明
部品番号: ATP080-24VDC 冷却方法: プレートクール
放射方法: 空軍 周囲温度/湿度: -20〜60°C
冷却能力: 80W 入力電力: 115W
加熱容量: 190W ホット/コールドサイドファン電流: 0.35A / NA
TEM公称/起動時電流: 4.2/5.3A 公称/最大電圧: 24/30 VDC
全体の寸法: 203mm×155mm×152mm ノイズ: 45 dB
重さ: 3.6kg 一生: > = 70,000時間
許容範囲: 10%

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.





ATP080-24 Air to Plate thermoelectric Cooler Assembly



1.Product Introduction



The ATP080-24 Thermoelectric air plate is designed for electronic cabinets and environmental chambers.
It can maintain ambient temperatures while removing up to 80W. This model is available in 24VDC
configurations. This air cold plate is virtually maintenance-free, with no filters ambient to change,
and it can be mounted in any orientation, offering design flexibility with solid-state reliability

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 0


2.Features



  •  80W capacity rated at ΔT = 0ºC,Tambient = 30°C
  • Refrigerant free - environmentally friendly
  • Wide operating temperature range of –20°C to +60°C
  • Shift between heating and cooling without using a heater
  • Reduced noise and vibration with no moving parts





3.Application

  • Analytical instrument
  • Medical diagnostics
  • Industrial device
  • Food and Beverage Cooling

4.Performance Curve

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 1


5.Dimension (mm)

80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 2


6.Installation cut hole and Connector (mm)


80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 3



80W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 480W Thermoelectric air plate is designed for electronic cabinets and environmental chambers. 5
